B15 ELECTRA

Este producto ha sido reemplazado por una nueva generación que puedes encontrar AQUÍ

SISTEMA DE BISELADO B15 ELECTRA (Bisel máx. 15 mm)
With High Performance Motor And Gearbox Fein Power Tools

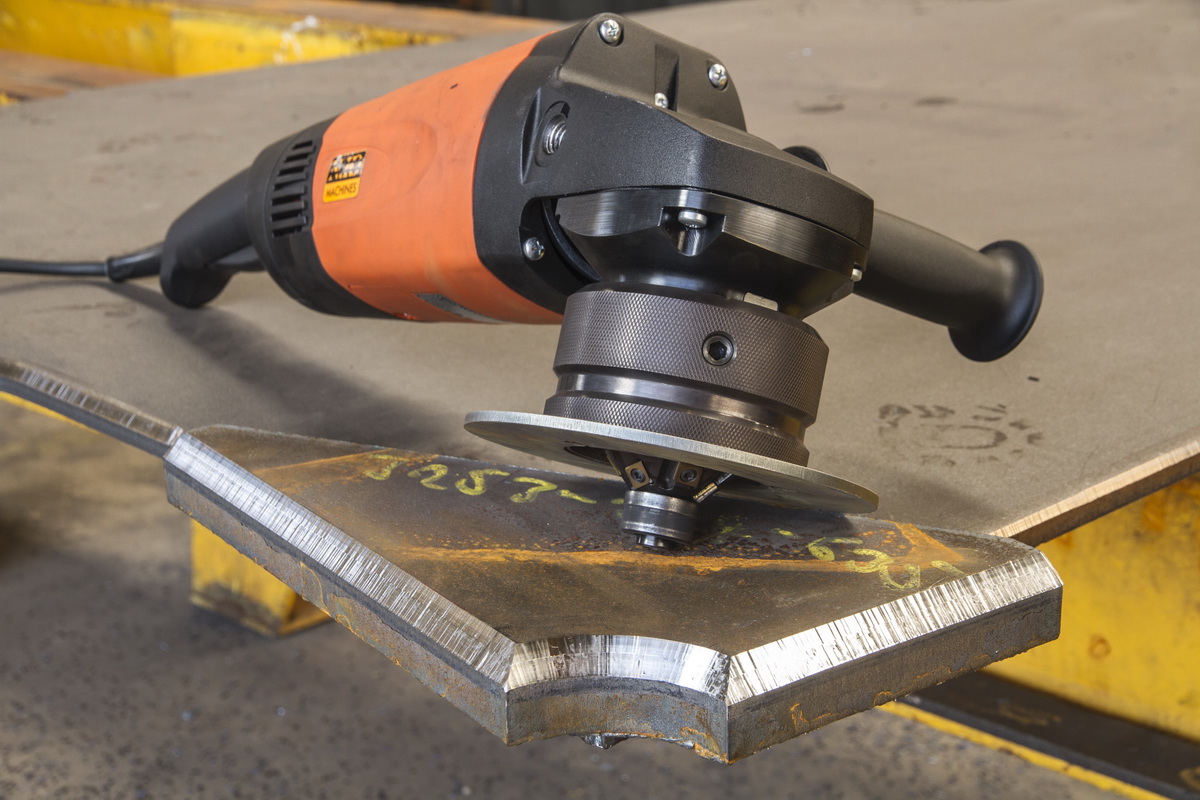

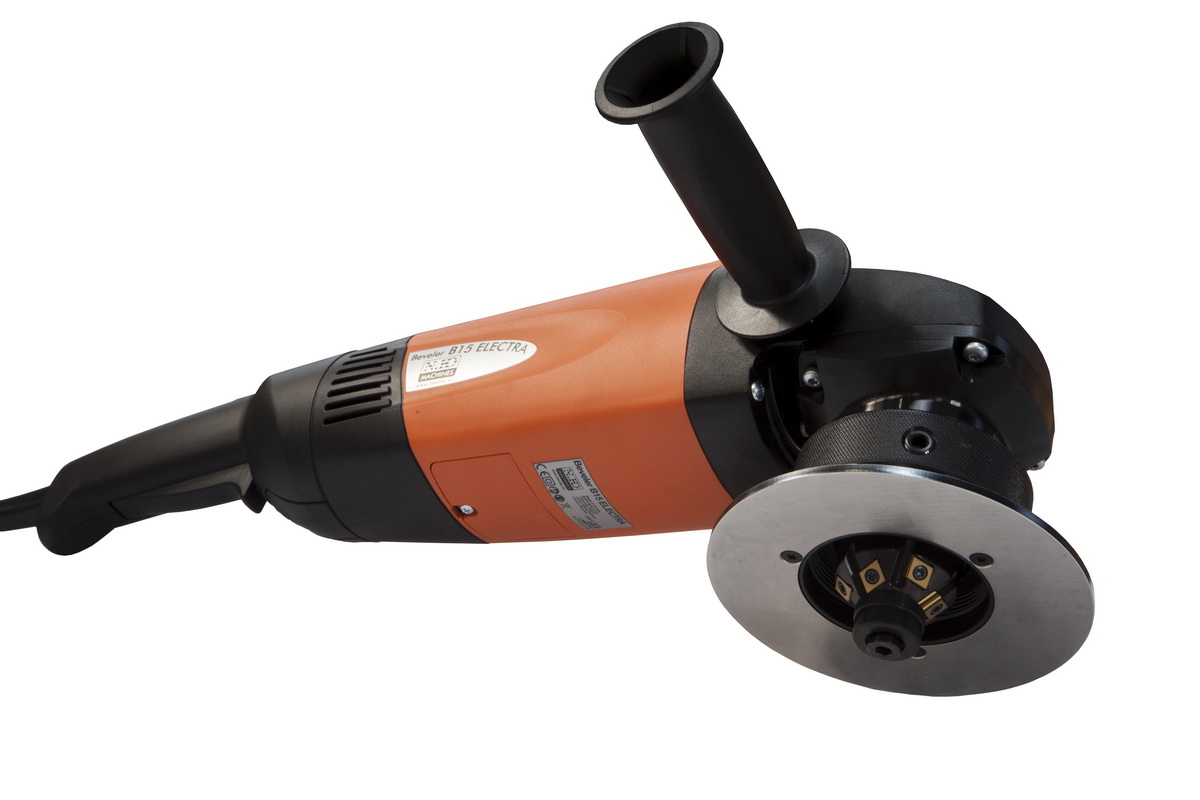

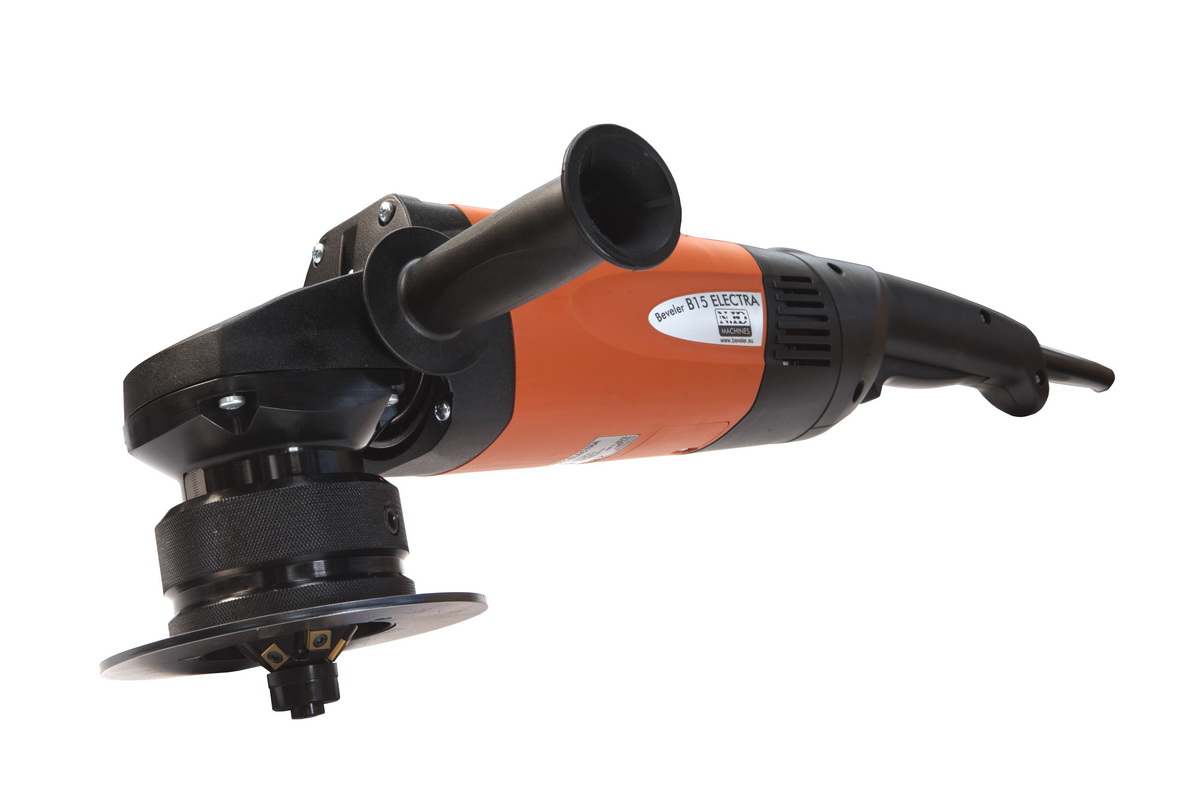

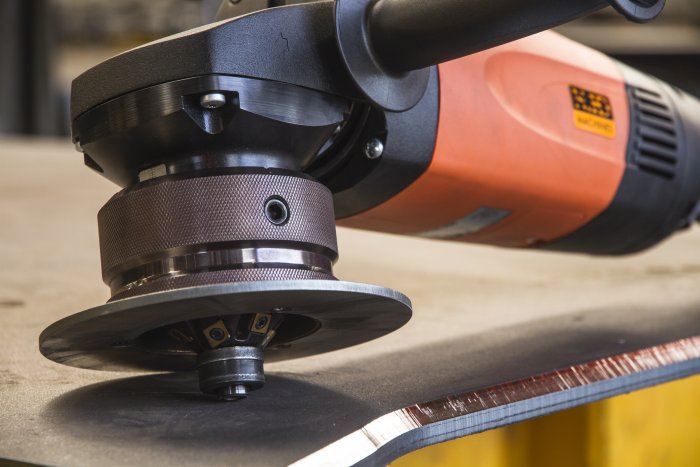

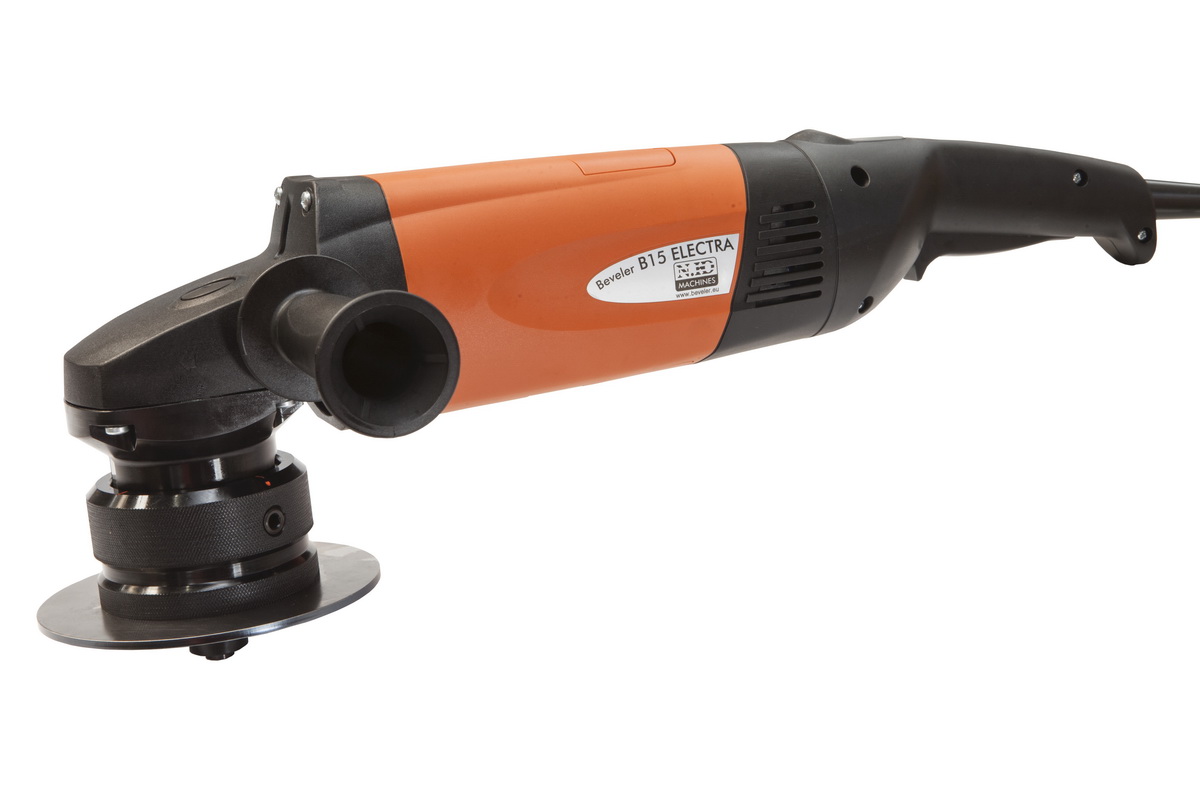

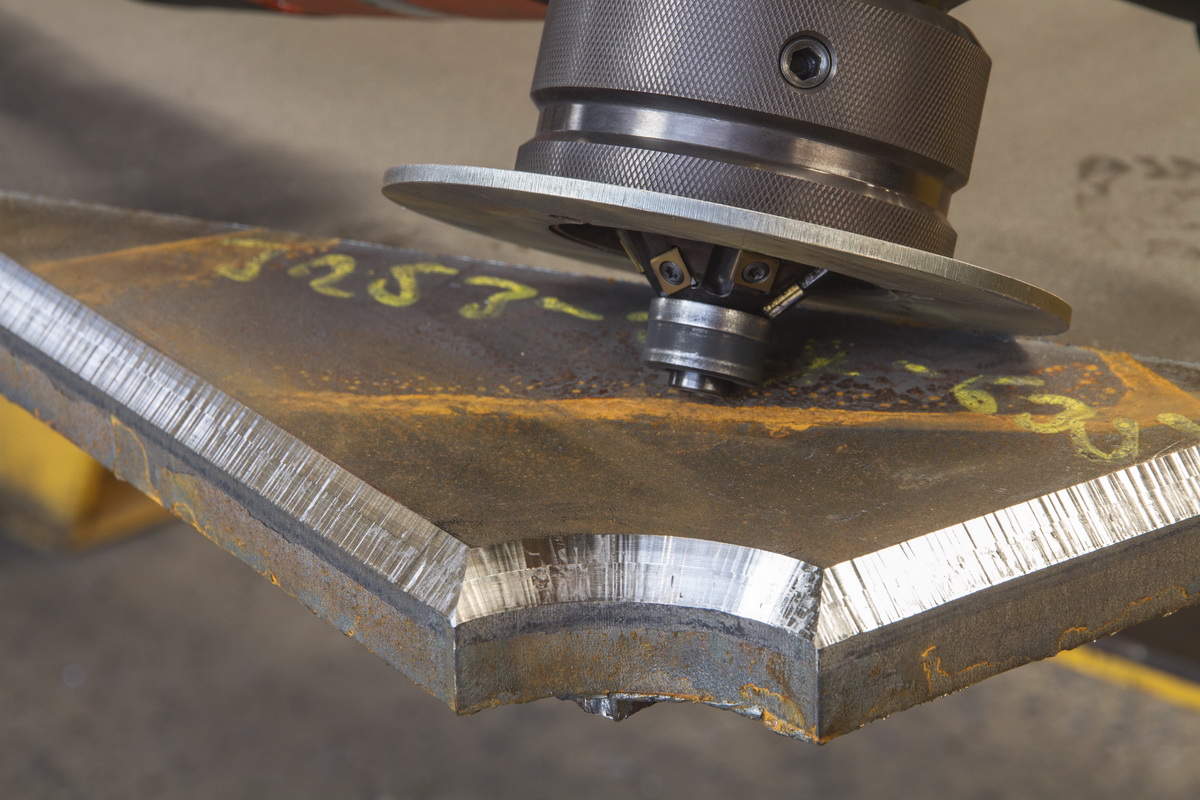

La biseladora B15 ELECTRA es una biseladora manual portátil que utiliza 6 insertos de carburo desechables. Su diseño permite biselar bordes rectos y distintas geometrías como curvas y recortes, con facilidad.
Para trabajar acero al carbono, aluminio, cobre, plásticos y otros materiales.

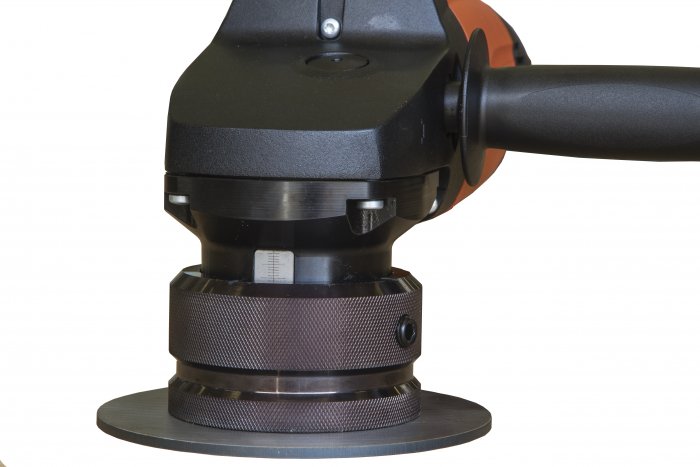

Equipada con una escala de precisión, permite un ajuste preciso de la altura de chaflán.
Cabezal intercambiable para biselados de 30°, 37,5°, 45°, 50°, 60° y otros ángulos disponibles bajo petición..

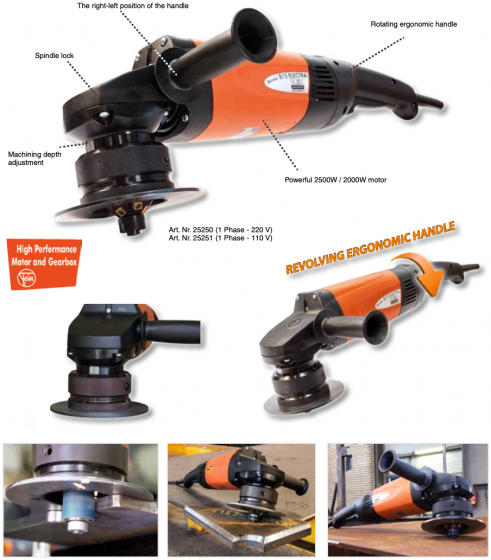

Mango ergonómico giratorio

Datos técnicos:

Rendimiento del motor: 2500 W
Motor: 230 V / 50 Hz
Revoluciones: 6600 RPM
Anchura de biselado: 0 a 15mm <400 N/mm2; 0 a 8mm > 400 N/mm2
Peso: 7 Kg aprox.
Angulo de biselado: Opcional 30°, 37,5°, 45°, 50°, 60°, otros ángulos bajo petición.
About FEIN POWER TOOLS

El precio incluye:

Biseladora modelo B15 ELECTRA
Herramientas necesarias para el mantenimiento y cambio de herramientas
Caja de cartón
Manual de instrucciones
SIN CABEZAL DE BISELADO ESTÁNDAR!

Machine name:	1Phase-230V	1Phase-120V
Bevelling and deburring system B15 ELECTRA (without the milling head)	25250	25251
SET Bevelling system B15 ELECTRA + dock station B-Dock (without the milling head)	25252	25253
SET Bevelling system B15 ELECTRA + Xpipe Beveler (without the milling head)	25254	25256
SET Bevelling system B15 ELECTRA + dock station B-Dock + Xpipe Beveler (without the milling head)	25255	25257

Accessories – PREMIUM milling heads:	Art.Nr.

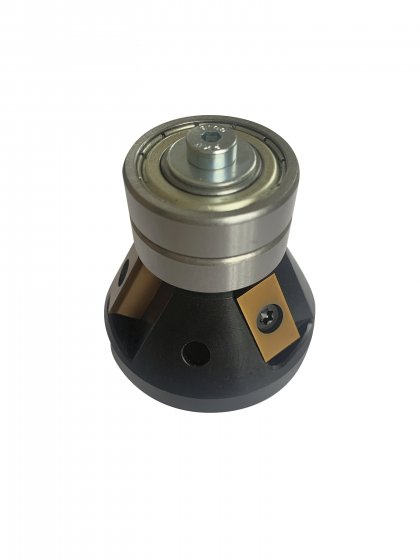

30° milling head PREMIUM - the cutting inserts and the lead roller Ø 30 mm / 1.19“are included	27223X
37,5° milling head PREMIUM - the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included	27227X

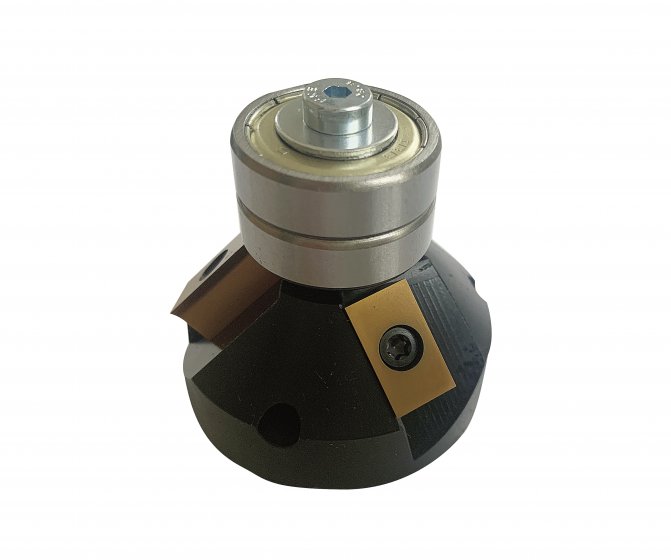

45° milling head PREMIUM - the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included	27222X
50° milling head PREMIUM - the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included	27224X
60° milling head PREMIUM - the cutting inserts and the lead roller Ø 19 mm / 0.75“ are included	27240X
The additional special roller 30° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 33,5 mm / 1.32“	28004
The additional special roller 37,5° for shorter cutting inserts 8 mm / 0.3“	28013

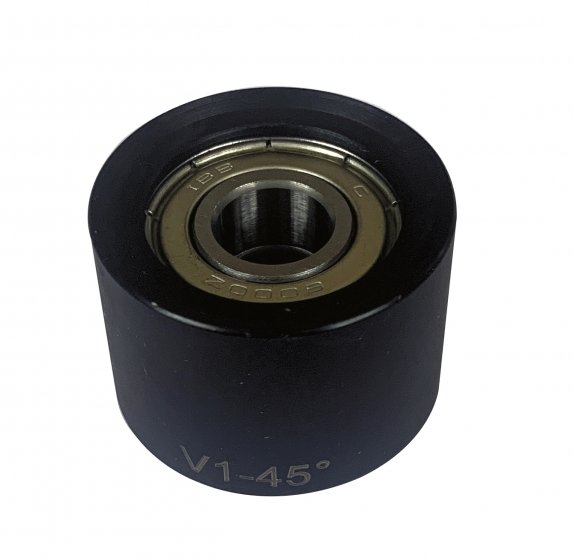

The additional special roller 45° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 31 mm / 1.23“	28005
The additional special roller 50° for shorter cutting inserts 8 mm / 0.3“	28014

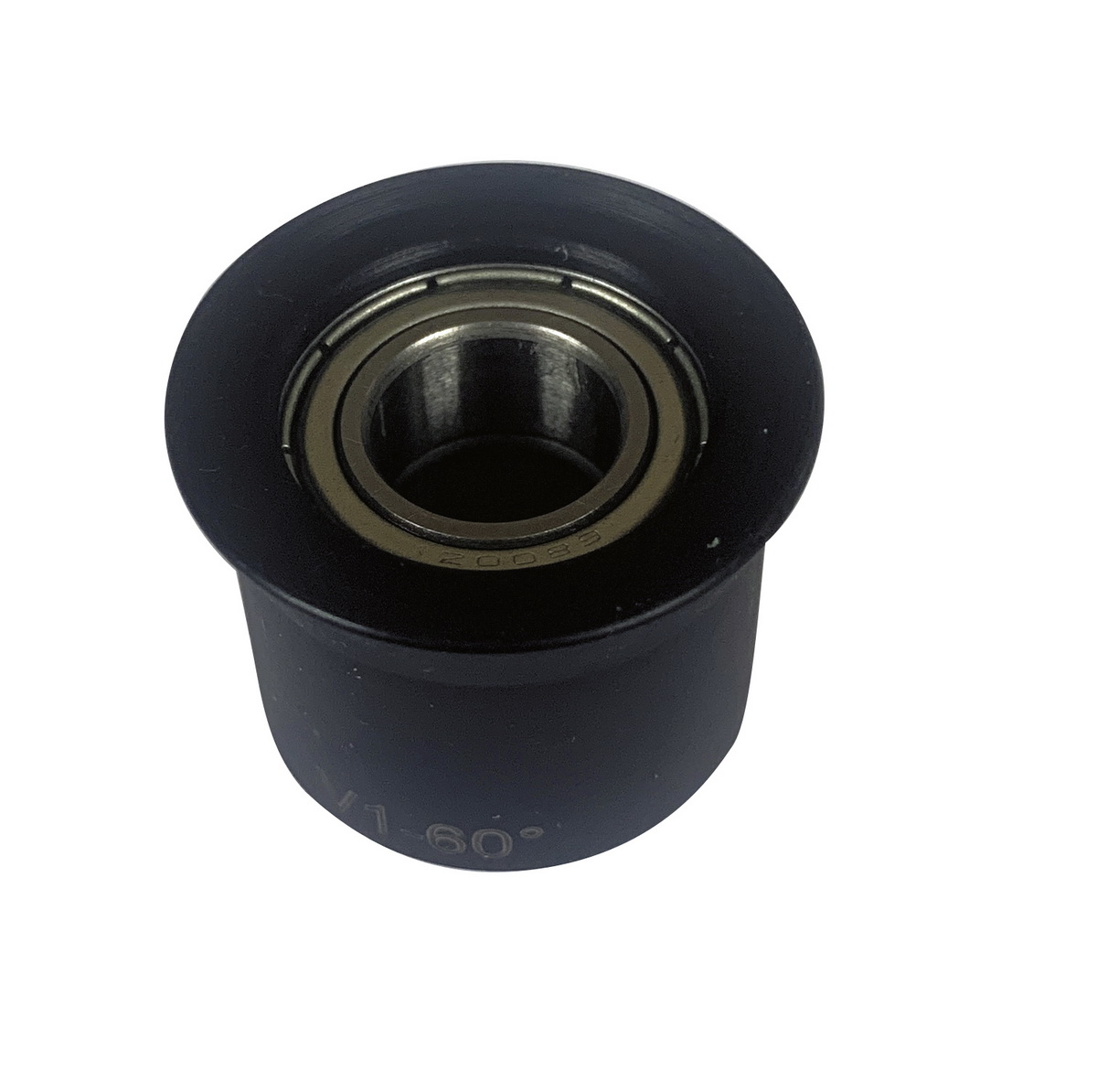

The additional special roller 60° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 25,5 mm / 1.01“	28006
The spare two sided cutting inserts 15 mm / 0.6“ - two-sided, coated - pack of 10 pcs - only for premium milling heads	28015
The shorter four sided cutting inserts 8 mm / 0.3“ - four-sided, coated - pack of 10 pcs - only for premium milling heads with additional special roller	28008

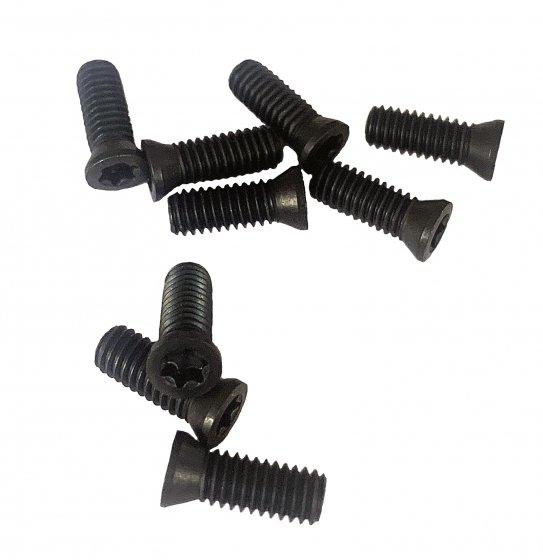

The fastening screws for cutting inserts (works with both cutting inserts versions) - only for premium milling heads	28007

Accessories – Edge cleaner – grinding adapter:	Art.Nr.

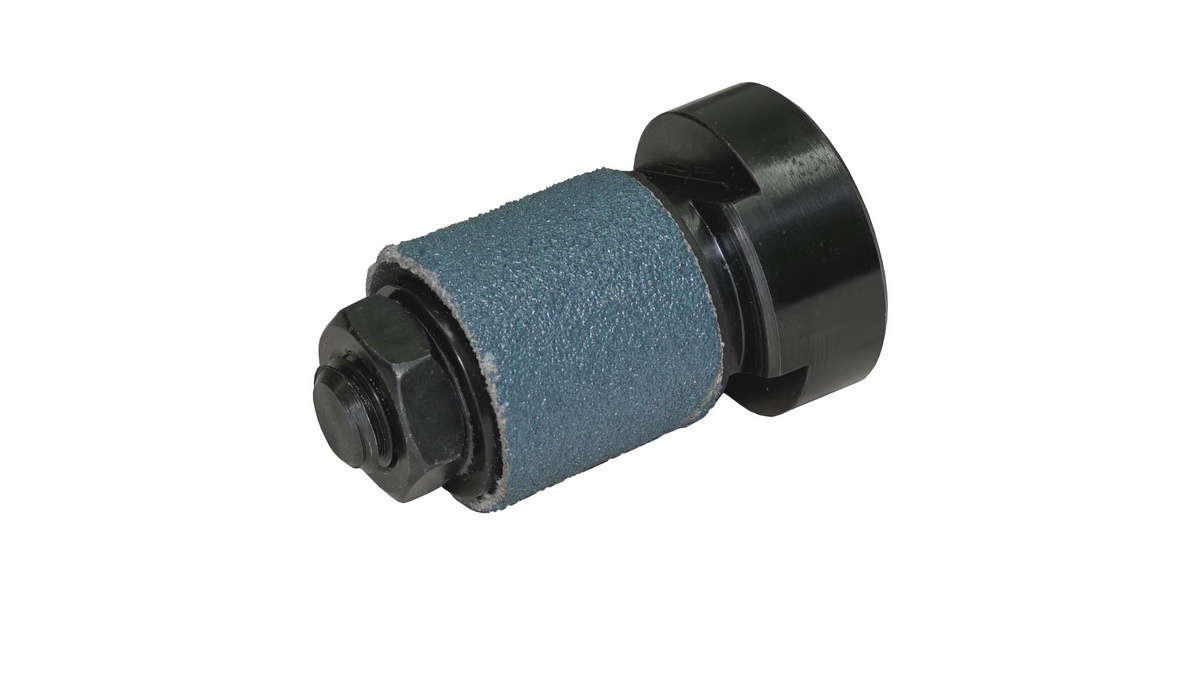

Edge Cleaner – grinding adapter - including 10 pcs grinding rings grain 40, 1 pc guiding roller	25310
Grinding rings grain 40 for Edge Cleaner - pack of 50 pcs	25312
Spare polyurethane guiding roller for Edge Cleaner	25311

Accessories – The Rounding milling heads:	Art.Nr.

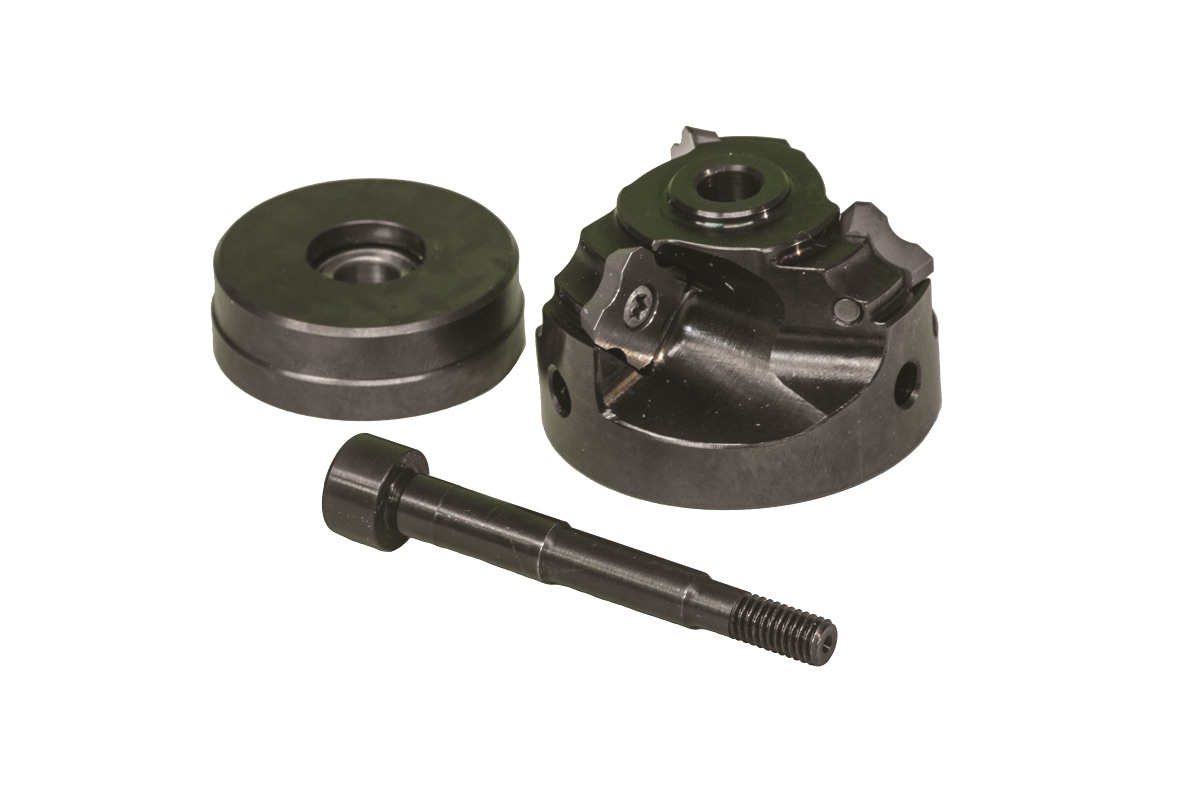

Complete radius milling head R2,5 mm / 0.08“ - including of the guiding roll and fastening screw, the cutting inserts are included - the lead roller diameter Ø 30 mm / 1.19“	27234
Complete radius milling head R3,5 mm / 0.12“ and R4 mm / 0.16“ - including of the guiding roll and fastening screw, the cutting inserts R3,5 mm / 0,12“ are included - the lead roller diameter Ø 39,5 mm / 1.55“	27233
Cutting inserts for rounding edges R2,5 mm / 0.08“ - four-sided - pack of 10 pcs	26109
Coated cutting inserts for rounding edges R3,5 mm / 0.12“ - four-sided - pack of 10 pcs	26110
Coated cutting inserts for rounding edges R4 mm / 0.16“ - four-sided - pack of 10 pcs	26111
The fastening screws for cutting inserts - only for rounding milling heads	27242

Accessories – The older ECO milling heads. Available while supplied last.	Art.Nr.
30° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 34 mm / 1.34“	27223
37,5° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 28 mm / 1.10“	27227
45° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 28 mm / 1.10“	27222
50° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 28 mm / 1.10“	27224
60° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 27 mm / 1.06“	27240
Cutting head with non-standard angle - including inserts, screws, bolts and roller	27XXX
Coated cutting inserts - four-sided - pack of 10 pcs - only for ECO milling heads	27231
Screw for the cutting inserts - only for ECO milling heads	27241

Accessories – others:	Art.Nr.
Dock station B-Dock (beveler B10 Electra / B15 Electra is not included)	25350
Xpipe Beveler – bevelling tool for machining of pipes from Ø 85 mm / 3.36“ (beveler B10 Electra / B15 Electra / B15 AIR is not included)	25500
Special lubricating paste for the milling heads 120g – prevents seizing up, wear, cold-welding, solidifying of the threads	33005

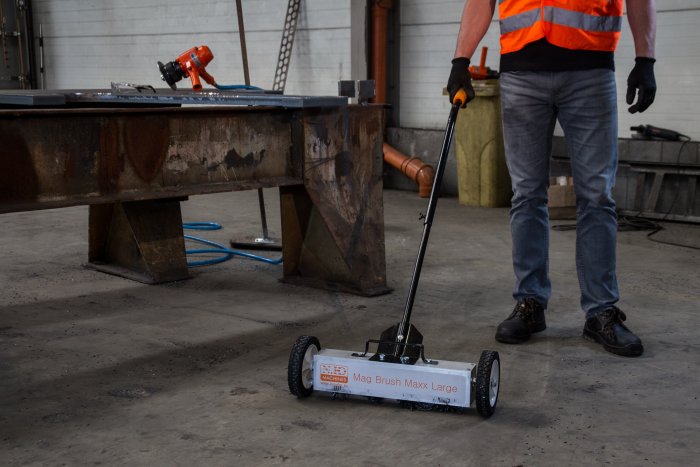

Mag Brush Maxx Large – magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in	NMF0107
Mag Brush - collects all magnetic	18654
